Janome 1008 Disassembly
Screws
| Screw | Location | Type | For | Notes |
|---|---|---|---|---|
| B1 | Bottom side, top left | Hat | Front panel removal | |
| B2 | Bottom side, bottom left | Front panel removal | ||
| B3 | Bottom side, top right | Front panel removal | ||
| B4 | Bottom side, bottom right | Front panel removal | ||
| B5 | Bottom side, middle right | Hat | Front panel removal | |
| B6 | Internal, access from bottom side, middle left | Hat | Front panel removal | Loosen only |
| B7 | Bottom side, arm section, middle | Short | Rear panel removal | |
| R1 | Right side, middle | Screw with plastic cover | Front & rear panel removal | Remove plastic cover with flathead from right side. |
| BK1 | Back side, middle | Front & rear panel removal | ||
| L0 | Left side, top arm, middle | Front panel removal | ||
| L1 | Left side, inside top arm, top | Hat | Front panel removal | Not the screw that goes into the purple tensioner. Loosen only. |
| L2 | Left side, inside top arm, bottom | Front panel removal | The big screw above the smaller screw. | |
| T1 | Top side, below right side of handle | Screw with metal tab | ??? Front panel removal ??? | Removal may not be required. |
| F1 | Front side, inside bobbin cover, bottom right | Hat | Front panel removal |
Bottom
Right
No need to remove the purple turnie thing.
Back

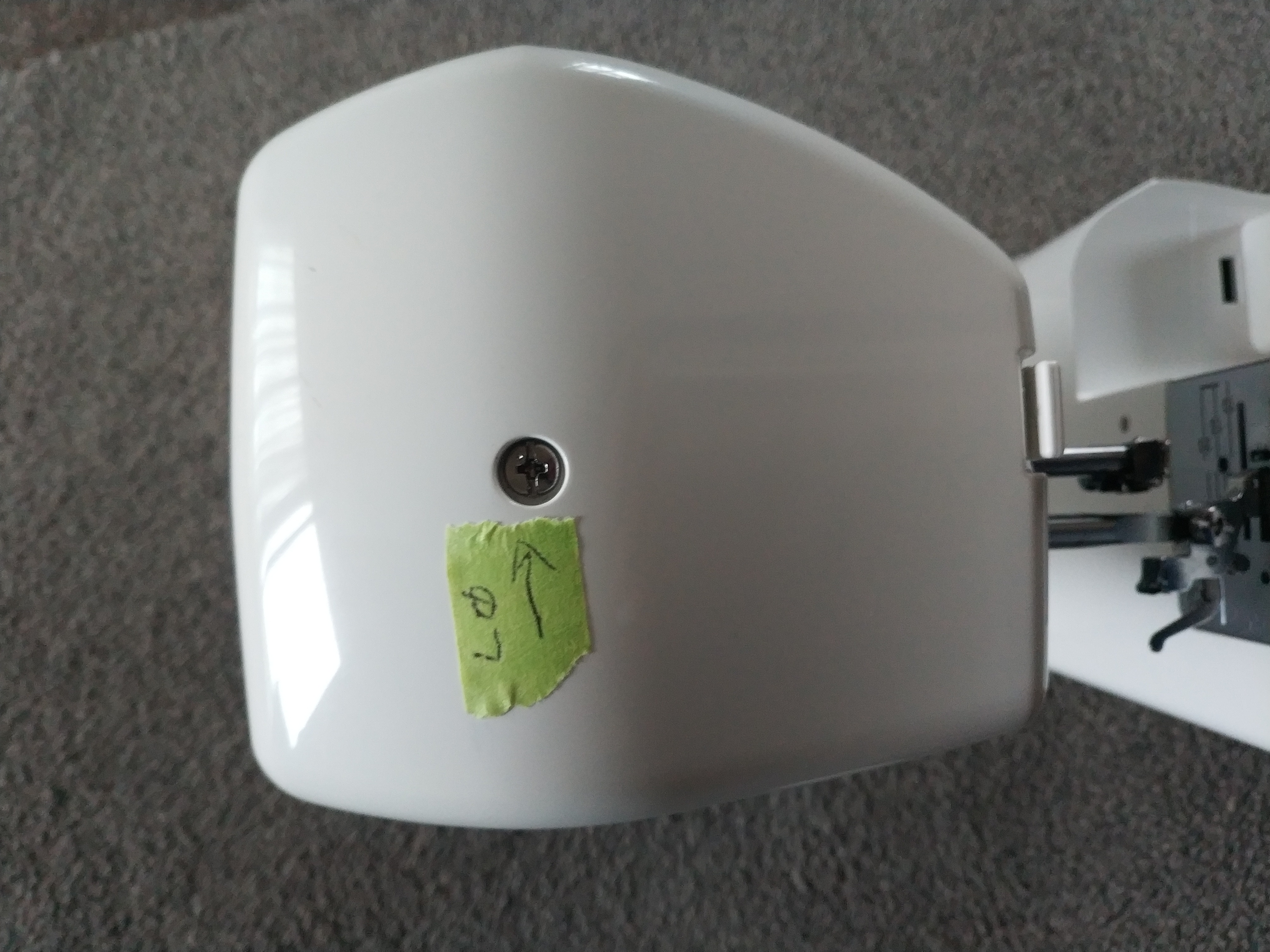

Left
There is no need to remove the purple tensioner.
Top
One screw only is required to be removed, and I'm not sure even that needs to be removed.
Front
Selector and Length knobs - pull straight out.

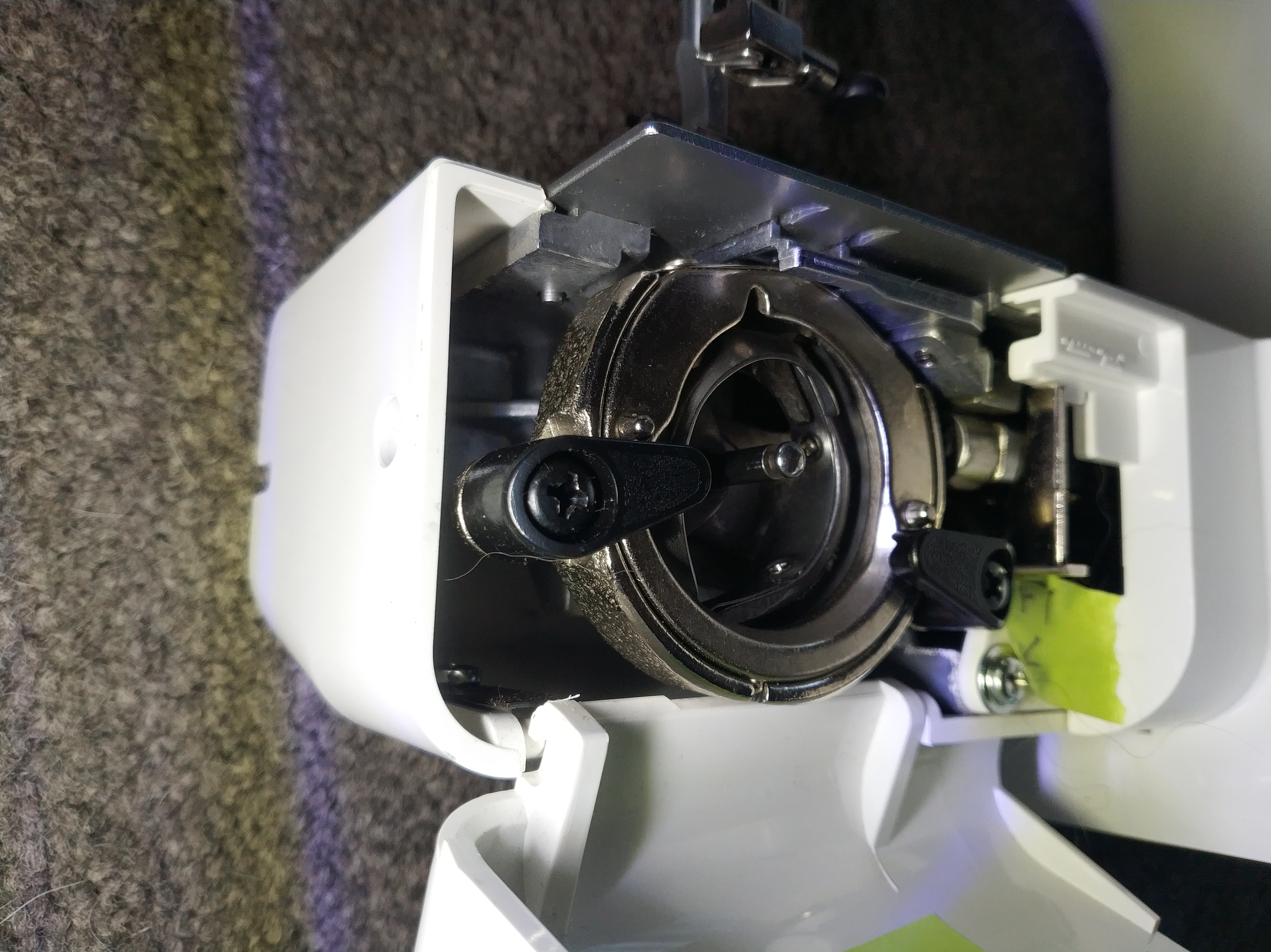

Bobbin cover - open fully, lift left side out and slightly up.
